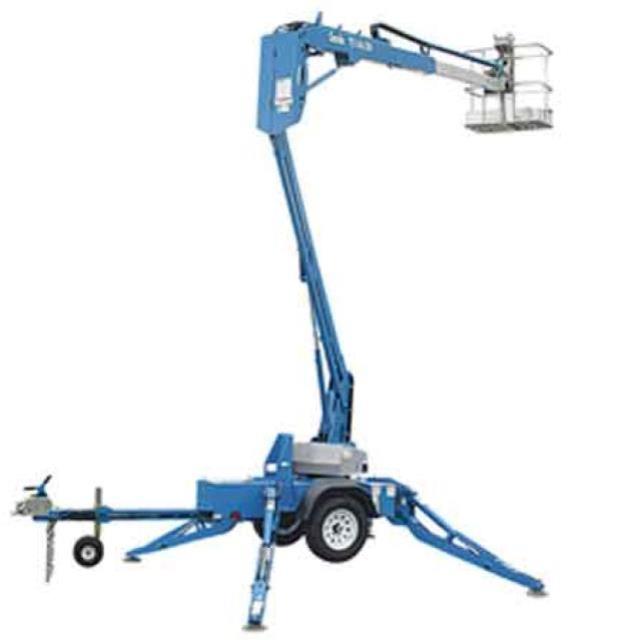

TRAILER MOUNTED LIFT
LIFT, BOOM TRAILER 34'
Image for reference only
Actual item may look different
Click on image for larger view
Click on above thumbnails for alternate view
Product Information
- Total Weight - 3,200 lbs. / Tongue weight - ANSI, CSA 315 lbs, / CE 163 lbs
- Working height* 40 ft, Platform height 34 ft
- Horizontal reach 18 ft 4 in / Clear out reach 13 ft 5 in
- Up and over clearance 16 ft 1 in
- Platform - length 2 ft 2.8 in, width 3 ft 8 in
- Stowed - Height 6 ft 4.5 in, Length - 18 ft .5 in, Width - 4 ft 9.1 in
- Ground clearance 9.5 in
- Outrigger footprint Length 10 ft 8.4 in, Width 11 ft 9.4 in
- Lift capacity (ANSI, CSA) - rotating platform 460 lbs
- Self leveling platform standard
- Platform rotation option 90 mechanical
- AC power to platform standard /
- Turntable rotation 359 non-continuous
- Outrigger leveling capability 10.5 (18% grade)
- Towing speed rate 60 mph
- Surge and parking brakes
- Controls variable speed system
- Tire size ST 205/75 R15
- Coupler 2 in (5.08 cm) hitch coupler standard
- Power source 24 V DC (four 6 V 225 Ah batteries)
| Manufacturer: | GENIE |
|---|---|
| Model: | TZ34/20 |
| Daily: | $260.00 |
| Weekly: | $1,040.00 |
| Monthly: | $2,080.00 |
Also check the following item(s) related to the above:
* Prices are subject to change.
