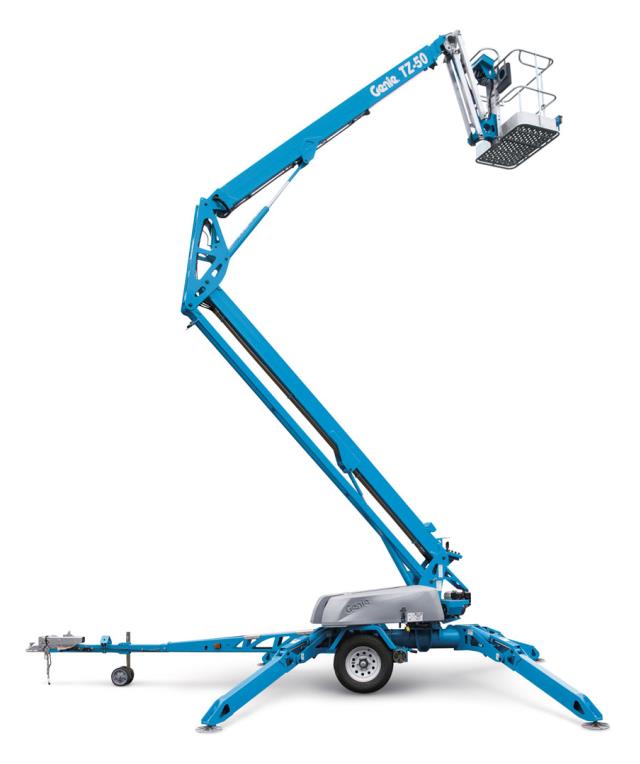

TRAILER MOUNTED LIFT
LIFT, BOOM TRAILER 50'
Image for reference only
Actual item may look different
Click on image for larger view
Click on above thumbnails for alternate view
Product Information
- Working height* 55 ft
- Platform height 49.5 ft
- Horizontal reach 29 ft
- Clear out reach 23 ft
- Up and over clearance 22 ft
- Platform length 2 ft 3 in
- Platform width 3 ft 8 in
- Height - stowed 6 ft 10 in
- Length - stowed 23 ft 6 in
- Width - stowed 5 ft 6 in
- Ground clearance 10 in
- Length - outrigger footprint 14 ft 4 in
- Width - outrigger footprint 14 ft 4 in
- Lift capacity (ANSI, CSA) - rotating platform 500 lbs
- Total Weight 4,400 lbs.
- Self leveling platform standard
- Platform rotation option 90 mechanical
- AC power to platform standard
- Turntable rotation 359 non-continuous
- Outrigger leveling capability 10 (17% grade)
- Towing speed rate 60 mph
- Tongue weight - 400 lbs
- Surge and parking brakes standard
- Controls variable speed system
- Tire size ST 225/75 R15
- Coupler 2 in
- Power source 24 V DC (four 6 V 225 Ah batteries)
| Manufacturer: | GENIE |
|---|---|
| Model: | TZ50 |
| Daily: | $270.00 |
| Weekly: | $1,080.00 |
| Monthly: | $2,160.00 |
